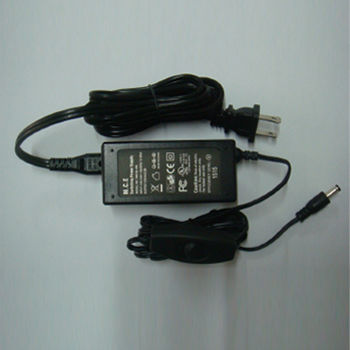

YMC36-XY SERIES
Switching power supply | 36W Adapt | Made in Taiwan or China
| Safety: |
CB,CE,UL,FCC |
| EMC Requirement: |
EN 55022/FCC part 15 |
| Meet environmental standards: |
RoHS, Reach |
| Efficiency: |
CEC,ERP LEVEL V |
| Operation Temperature: |
0～40°C |
| Relative Humidity: |
10%～90% |
| Storage Temperature: |
-30～70°C |
| Hi-Port 3000VAC 1min |
| Protection Requirement: |
Short Circuit、Over current、Over Voltage |
| Input |
|---|
| Input Voltage： |
100~240VAC |
| Frequency： |
47~50/60~63Hz |
| Input Current： |
1.0A(Max) |
| Inrush Current： |
240VAC,50A 0.2(Max) |
| Leakage Current： |
0.25mA(Max) |
| Output |
|---|
| Power Output： |
36W |
| Line Regulation： |
< 2.0% |
| Load Regulation： |
< 5.0% |
| Turn On Delay Time： |
< 5S @ 100VAC |
| Hold Up Time： |
5ms@100VAC |
| Ripple and Noise： |
1% (Max) |
| Output Voltage |
Current |
Output power |
| 5.0-8VDC |
4.0A MAX |
30W |
| 8.01-12VDC |
3.0A MAX |
36W |
| 12.01-18VDC |
2.6A MAX |
36W |
| 18.01-24VDC |
2.0A MAX |
36W |
